10Hz-10MHz FRA Analyzer with ±20V Output for Transformer Winding Testing

  • 1
  • 2
  • 3

Brand Name : MINGYANG

Model Number : MY-RZ

Place of Origin : China Mainland

MOQ : 1

Price : 5500usd

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1000pcs/month

Delivery Time : 1 week

Packaging Details : carton

Type : Testing Machine

Accuracy Class : High Accuracy

Warranty : 2 years

Power : 200

Place of origin : Hubei, China

Scanning frequency accuracy : 0.01%

Signal output impedance : 50Ω

Sweep frequency measurement range : (10Hz)-(10MHz)40000 frequency sweep point

Voltage : 220V Electrical Equipment

Weight : 10KG

Working power supply : AC 220V±10% 50Hz±1Hz

Signal output amplitude : ±20V

Contact Now

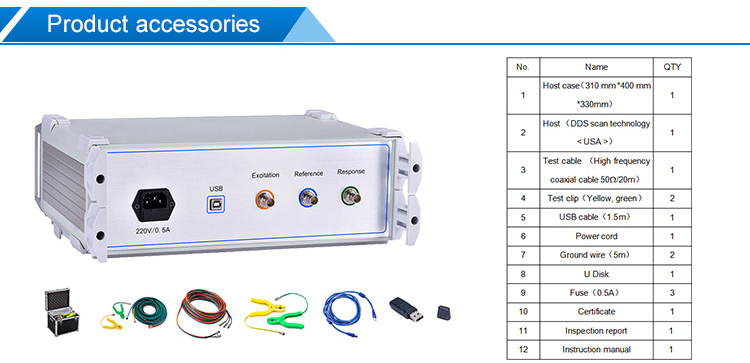

Transformer Sweep Frequency Response Analyzer (FRA)
Professional transformer winding deformation tester using advanced Frequency Response Analysis (FRA) technology for accurate internal fault diagnosis.
Product Overview
This advanced analyzer measures internal transformer winding parameters using Frequency Response Analysis (FRA) methodology, enabling precise detection of internal transformer faults including winding deformation, displacement, and short circuits.
Key Features
  • High-speed microprocessor with integrated acquisition control
  • USB interface for computer connectivity
  • Optional wireless Bluetooth interface
  • DDS digital high-frequency sweep technology for accurate fault diagnosis
  • Dual-channel 16-bit A/D sampling with clear waveform visualization
  • Software-controlled signal output up to ±10V peak
  • Automatic electronic report generation (Word format)
  • Dual frequency measurement systems with linear and logarithmic scaling
  • Automatic data analysis with phase comparison (A, B, C)
  • Winding deformation assessment with four-level classification
  • Compliant with DL/T911-2004 technical standards
Technical Specifications
Amplitude Measurement Range (-120dB) to (+20dB)
Amplitude Measurement Accuracy 0.1dB
Scanning Frequency Accuracy 0.01%
Signal Input Impedance 1MΩ
Signal Output Impedance 50Ω
Signal Output Amplitude ±20V
Test Repetition Rate 99.9%

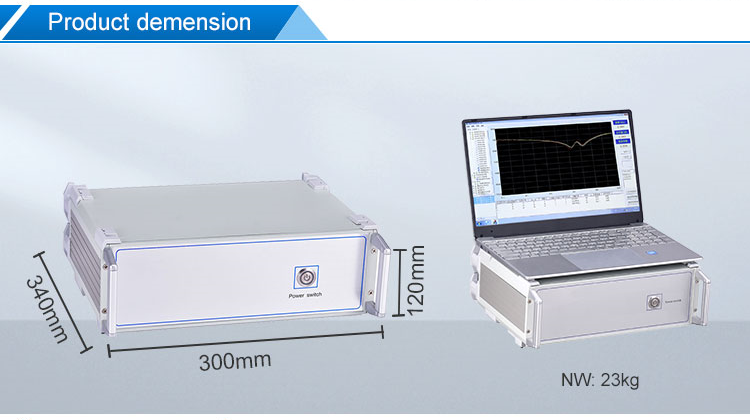

Dimensions 300 * 340 * 120 mm
Package Size 310 * 400 * 330 mm
Weight 10 kg
