Earth Network Grounding Resistance Tester Electric Network Analyzers For Measuring

Name: Earth Network Grounding Resistance Tester Electric Network Analyzers For Measuring
Brand: MINGYANG
Price: 3800 USD

Buy cheap Earth Network Grounding Resistance Tester Electric Network Analyzers For Measuring product

Brand Name : MINGYANG

Model Number : MY- KLH

Place of Origin : Hubei, China

MOQ : 1

Price : 3800usd

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1000pcs/month

Delivery Time : 1 week

Packaging Details : carton

Measuring Range : 1-1999μΩ

Accuracy Class : High Accuracy

Operating Temperature : -10℃~40℃

Time Resolution : 1s

Current Resolutio : 1μΩ

Resolution : 1μΩ

Measurement accuracy : 0.5%

Measurement range : 1-1999μΩ

Working power supply : AC220V ± 10%, 50Hz ± 1Hz

Weight : 12kg

Display mode : three-and-a-half-digit LCD

Volume : 380*350*260 mm

Type : Testing Machine

Application : Electrical Testing

Voltage : 220 V

Warranty : 2 Years

Accuracy : ±(reading*2%+0.005Ω)

Customized support : OEM, ODM, OBM, Software Reengineering

Measurement Error : ±(reading*2%+0.005Ω)

Anti-interference Ability : Power Frequency: 50Hz, Voltage: 10V, Error: 0.001Ω

Maximum Output Voltage : 400V (45Hz, 55Hz, Dual Frequency, Sine Wave)

Current Output Ranges : 5/4.5/4/3.5/3/2.5/2/1.5/1A

Maximum Output Current : 5A (Optional) (45Hz, 55Hz, Dual Frequency, Sine Wave)

Contact Now

Earth Network Grounding Resistance Tester

Professional electric network analyzer for measuring earth resistance with excellent price and comprehensive 2-year warranty.

Technical Specifications

Parameter	Specification
Impedance Measurement Range	1mΩ～200Ω
Resolution	0.001Ω
Measurement Error	± (reading × 2% + 0.005Ω)
Anti-interference Ability	Power Frequency: 50Hz; Voltage: 10V; Error: 0.001Ω
Test Current Waveform	Sine Wave
Test Current Frequency	45Hz, 55Hz Dual Frequency
Maximum Output Current	5A (Optional) (45Hz, 55Hz, Dual Frequency, Sine Wave)
Maximum Output Voltage	400V (45Hz, 55Hz, Dual Frequency, Sine Wave)
Current Output Ranges	5/4.5/4/3.5/3/2.5/2/1.5/1A, 0.5A increments, 9 ranges total
Soil Resistivity Measurement Range	0～1000Ω/m (ohms/meter)
Soil Resistivity Measurement Accuracy	±2%
Soil Resistivity Measurement Resolution	0～0.01Ω/m (ohms/meter)
Measurement Wire Requirements	Current wire copper core cross-sectional area ≥1.5mm², voltage wire copper core cross-sectional area ≥1.0mm²
Power Supply	AC220V±10%, 50Hz

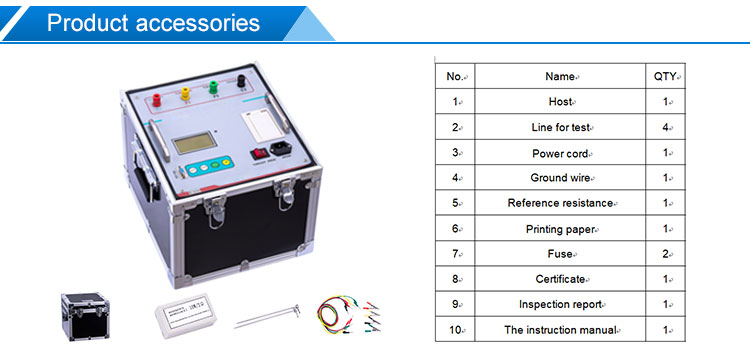

Product Images

Earth Network Grounding Resistance Tester Electric Network Analyzers For Measuring
