Portable SF6 Gas Analyzer With 0.01 High Accuracy Digital LCD Screen

Name: Portable SF6 Gas Analyzer With 001 High Accuracy Digital LCD Screen
Brand: MINGYANG
Price: 6500 USD

Buy cheap Portable SF6 Gas Analyzer With 0.01 High Accuracy Digital LCD Screen product

Brand Name : MINGYANG

Model Number : MYZH-II

Place of Origin : China Mainland

MOQ : 1

Price : 6500usd

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1000pcs/month

Delivery Time : 1 week

Packaging Details : carton

Type : Testing Machine

Voltage : 380 V, 240 V, 110 V, 220V Electrical Equipment

Warranty : 2 Years

Customized support : OEM, ODM

Protection Class : IP66

Place of origin : China

Accuracy : 0.01

Purity Measuring Range : 0%~100%

Purity Measuring time : <2min

Power supply : AC 220V ,Built-in rechargeable battery

Diemension : 250*150*300mm3

Weight : 5kg

Contact Now

Digital LCD Screen Portable SF6 Comprehensive Gas Analyzer

High-precision portable gas analyzer featuring digital LCD display, laboratory-grade auto testing capabilities, and comprehensive gas measurement functions with 2-year warranty.

Key Features

Digital LCD screen for clear data visualization
Portable design for field testing applications
Laboratory-grade auto testing with high accuracy
Comprehensive SF6 gas analysis capabilities
Extended 2-year manufacturer warranty
Integrated rechargeable battery for portable operation

Technical Specifications

Parameter	Specifications
Purity Measurement Range	0% - 100%
Purity Measurement Precision	±0.5%
Purity Measurement Time	< 2 minutes
Dew Point Range	-80℃ to +20℃
Dew Point Precision	±1℃ (-80℃ to -60℃)
H2S Measurement Range	0-200ppm
H2S Detection Limit	≤0.1ppm
SO2 Measurement Range	0-200ppm
SO2 Detection Limit	≤0.1ppm
HF Measurement Range (Optional)	0-20ppm
HF Detection Limit (Optional)	≤0.01ppm
CO Measurement Range (Optional)	0-1000ppm
CO Detection Limit (Optional)	≤1ppm
Environmental Temperature	-40℃ to +60℃
Ambient Humidity	0-100% RH
Power Supply	AC 220V with integrated rechargeable battery
Battery Performance	Charging: 20 hours; Usage: 10+ hours
Weight	5 kg
Dimensions	250 * 150 * 300 mm³
Operating Temperature	-40℃ to +80℃

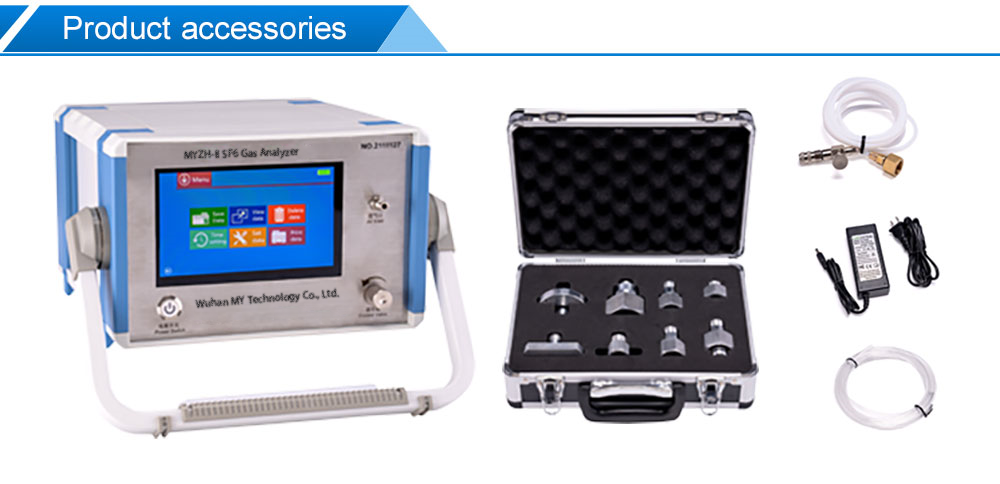

Product Images

Portable SF6 Gas Analyzer With 0.01 High Accuracy Digital LCD Screen
